General Purpose Op-Amp

•Standard Op-Amp

    e.g.  LM358

•Rail-to-Rail I/O Op-Amp

   e.g. TLV9001


High Speed Op-Amp

•High GBW e.g. 8GHz
•High Slew Rate e.g. 2750V/us

  e.g. OPA855

Audio Op-Amp – Audio Applications

•Low THD+N (<0.00005%)

•Ultra Low Noise (3nV/rtHZ)

          e.g. OPA325


Power Op-Amps (High Voltage and High Current Opamp)

•High Voltage (>45V)

•High Current (>200mA)

 e.g. OPA454

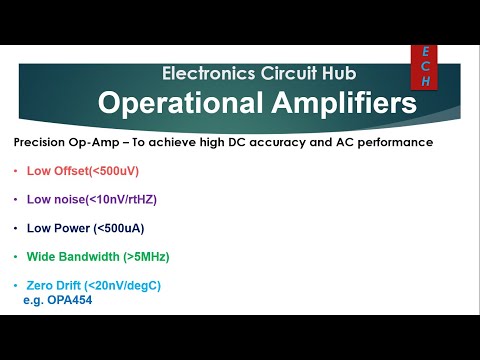

Precision Op-Amp – To achieve high DC accuracy and AC performance

•Low Offset(<500uV)

•Low noise(<10nV/rtHZ)
•Low Power (<500uA)
•Wide Bandwidth (>MHz)
•Zero Drift (<20nV/degC)

          e.g. OPA454
